V型
VS型
VL型
VLM型
多轴减速机 / Multi shaft gearboxes
VC型
SLC型
S型
SL型
SLM型
双蜗轮蜗杆减速机
? 贯穿轴，低转速
? 减速比： i = 1:1 至 6:1
?
最大输出扭矩至 T2 max = 5400 Nm
? 9个减速机尺寸，从边长35至 350 mm
- Continuous shaft, slow
running
- Transmission ratios: i = 1:1 to 6:1
- Max. output torque up to
T2 max = 5400 Nm
- 11gear unit sizes from 35 to350 mm edge
length
? 贯穿轴，高转速
? 减速比： i = 1,5:1 和 2:1
?
最大输出扭矩至 T2 N = 650 Nm
? 6个减速机尺寸，从边长 090 至 260 mm
- Continuous shaft fast
running
- Transmission ratios: i = 1.5:1 und 2:1
- Rated output torque up
to T2 N = 650 Nm
- 6 gear unit sizes from 090 to 260 mm edge
length
? 驱动端配有电机外壳和空心轴
? 可与IEC标准电机匹配
?
贯穿轴，低转速
? 减速比、扭矩和尺寸同V型产品
- Drive end with motor bell housing and hollow
shaft
- Compartible for installation of IEC standard motor
- Continuous
shaft, slow running
- Transmissionratios, torques and sizes like type
V
? 配有IEC标准电机
? 输出转速 112 至 2850
min-1
? 最大输出扭矩至 T2 max = Nm
- With IEC standard motor
- Output speed
112 to 2850 min-1
- Max. output torque up to T2 max = 5400 Nm
?
减速比从1.5至6:1（V型）
? 减速比从1.5至2:1（VS型）
? 配有实心或空心轴
? 轴端多达6个
- for ratios
from 1.5 to 6:1 for type V
- for ratios from 1.5 to 2:1 for type VS
- with
solid shaft or hollow shaft
- up to 6 shaft
ends
? 与伺服电机匹配的锥形减速机
? 驱动侧配方形法兰和紧固联轴器
?
贯通轴，低转速
? 减速比：i=1:1至6:1
? 加速扭矩至T2B=700 Nm
? 最小圆周尺侧间隙
? 高扭转刚度
?
6个减速机尺寸，边长65至200 mm
? 输入转速高达n1=6000 min-1
- Bevel gearboxes compartible
for installation on servo motors
- Drive end with square flange and clamping
coupling
- Continuous shaft, slow running
- Transmission ratios: i = 1:1
to 6:1
- Acceleration torques up to T2B = 700 Nm
- Minimum circumferential
backlash
- High torsional rigidity
- 6 gear unit sizes from 065 to 200 mm
edge length
- Input speeds up to n1 = 6.000 1 / min
? 与伺服电机匹配的锥形减速机
? 驱动侧配方形法兰和紧固联轴器
?
高效率
? 减速比：i=5:1至26:1（i>26时请咨询）
? 加速扭矩至T2B=1100 Nm
? 最小圆周尺侧间隙
?
高扭转刚度
? 5个减速机尺寸，中心矩40至100 mm
? 输入转速高达n1=6800 1/min
- Worm gearboxes
compartible for installation on servo motors
- Drive end with square flange
and clamping coupling
- High efficiency
- Transmission ratios: i = 5:1 bis
26:1 (i > 26 please ask)
- Acceleration torques bis T2B = 1100 Nm
-
Minimum circumferential backlash
- High torsional rigidity
- 5 gear unit
sizes from 040 to 100 mm centre distance
- Input speeds up to n1 = 6.800 1 /
min
? 自由驱动和输出轴
? 额定减速比： i = 05:1 至 83:1
? 最大输出扭矩达 T2 max = Nm
- Free
drive and output shafts
- 9 from axle base sizes a = 040 to 250 mm
-
Nominal transmission ratios: i = 05:1 to 83:1
- Max. output torque up to T2
max = 113Nm
? 驱动端配有电机罩和联轴器
? 可与IEC标准电机匹配
?
9个中心距尺寸 a = 040 至 250
? 减速比和扭矩同S型产品
- Drive side with motor latern and
coupling
- Compartible for installation on IEC standard motor
- 9 from
axle base sizes a = 040 to 250 mm
- ratios and torques like type
S
? 配有IEC标准电机
? 输出转速 为 8 至 555
min-1
? 最大输出扭矩达 T2max =13720 Nm
? 9个中心距尺寸 a = 040 至 250mm
- With IEC
standard motor
- Output speed 8 - 555 min-1
- Max. output torque up to T2
max = 13720 Nm
- 9 axle base sizes from a = 040 to 200 mm
Double Worm Gearboxes
?
- 可对S、SL、SLM和SLC型产品进行组合
? - 9个标准组合尺寸
? - 减速比可达6890:1
? - 输出转速0.1至8
min-1
- Connection gearbox like as type S, SL, SLM and SLC available
- 9
standard combinations size available
- for transmission ratios up to
6890:1
- Output speed 0,1 to 8 min-1
09
09
2021

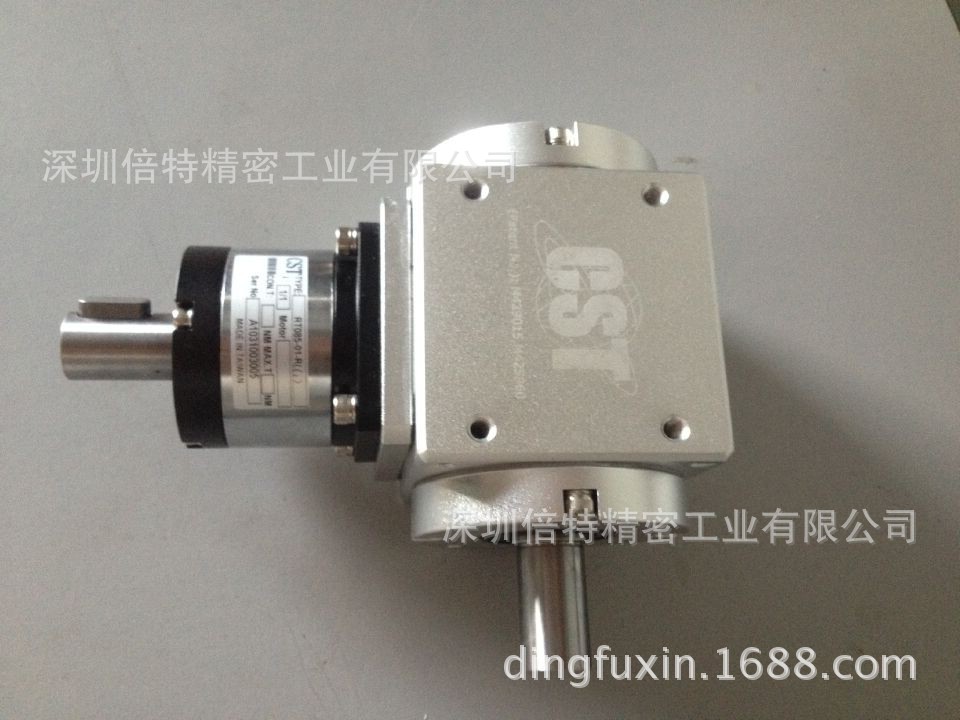

直角减速机
来源:[深圳倍特精密工业有限公司]
联系人：黄女士
手机：15989373267
电话：0755-29756736
传真：0755-29626016
QQ：577642761
Email：sz_better@163.com
地址：广东省深圳市深圳市深圳市宝安区松岗街道东方大道6号厂房C棟
品牌：直角
价格：4515.00
元/台
供应地：广东省深圳市
产品型号：RXW085AL1-3-RF
锥形齿轮减速机
伺服减速机
蜗轮蜗杆减速机
