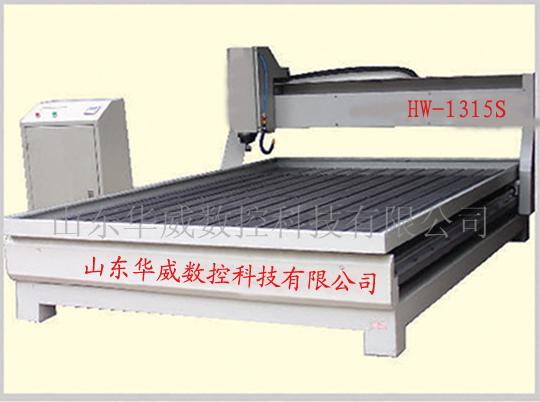

HW-1215S/HW-1315S玻璃雕刻机

  性能指标                                  参数
  X行程                                      1300mm
  Y行程                                      1500mm
  进料高度                              200mm
  平台尺寸                              1400*1780mm
  加工精度                                0.02mm
  重复定位精度                    0.02
  台面结构                                铝型材
  X、Y、Z结构                    进口滚珠丝杠
  机器自耗功率                    0.8KW
  最大空行速度                  10000mm/min
  最大雕刻速度                  7000mm/min
  主轴功率                              2.2KW
  主轴转速                                24000r/min
  运行模式                                步进
  工作电压                              AC220V/50Hz
  运行指令                              G代码*.u00*.mmg*.plt
  操作系统                                维宏/Dsp手柄
